Tillan Frameset and motor

4.860,005.500,00 VAT Includes

Carbon frame IQ-labs
Carbon Fork spork 3.0 – Rodeo Labs / or only frame
Axle ant. 12 mm (15 mm on request) x 100 mm  (only with frameset)
Axle post 12 x 142 mm IQ-labs
Rear plate for Chain
Motor Maxon Bikedrive Air
Battery Maxon Air
Hmi Maxon Air
Sensor Maxon Air
Crankset standard ISIS (Not included)
Luggage rack attachments
Mudguards rack attachments
Tyre max 700Cx50mm or 650Bx55mm


SKU: framseset Category:

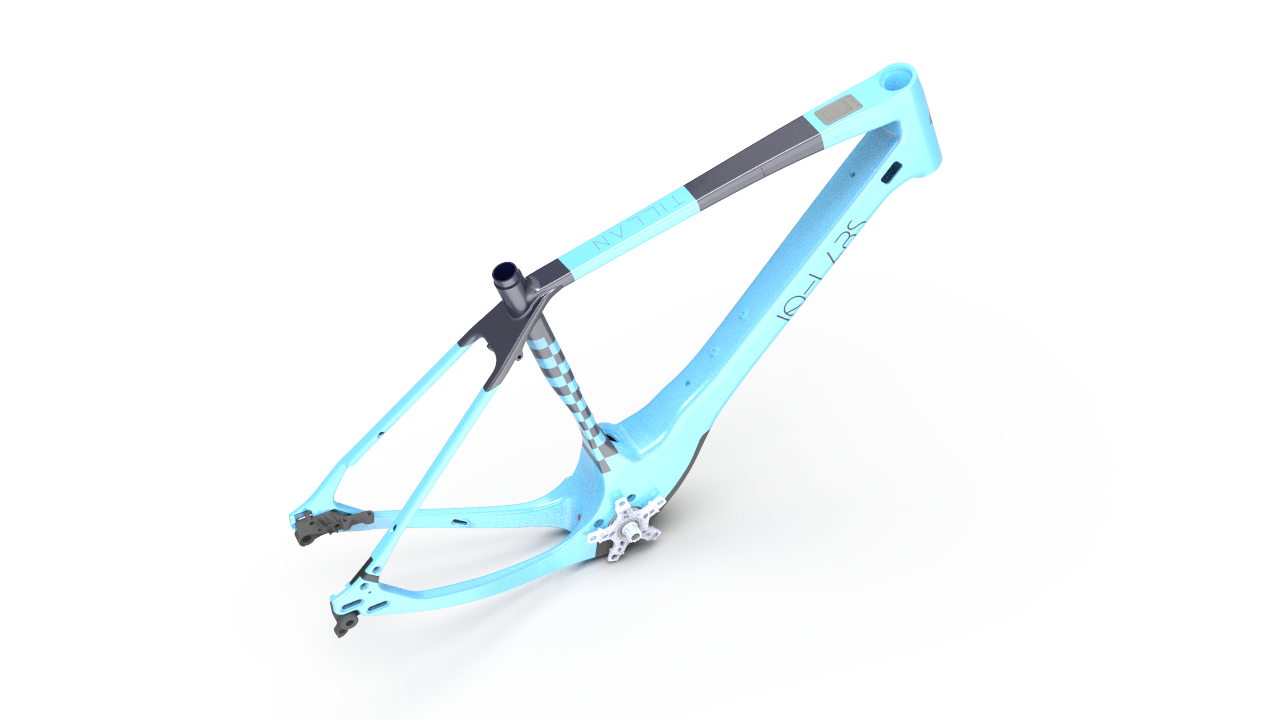

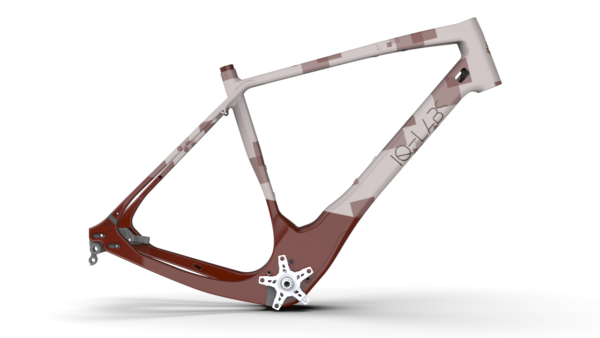

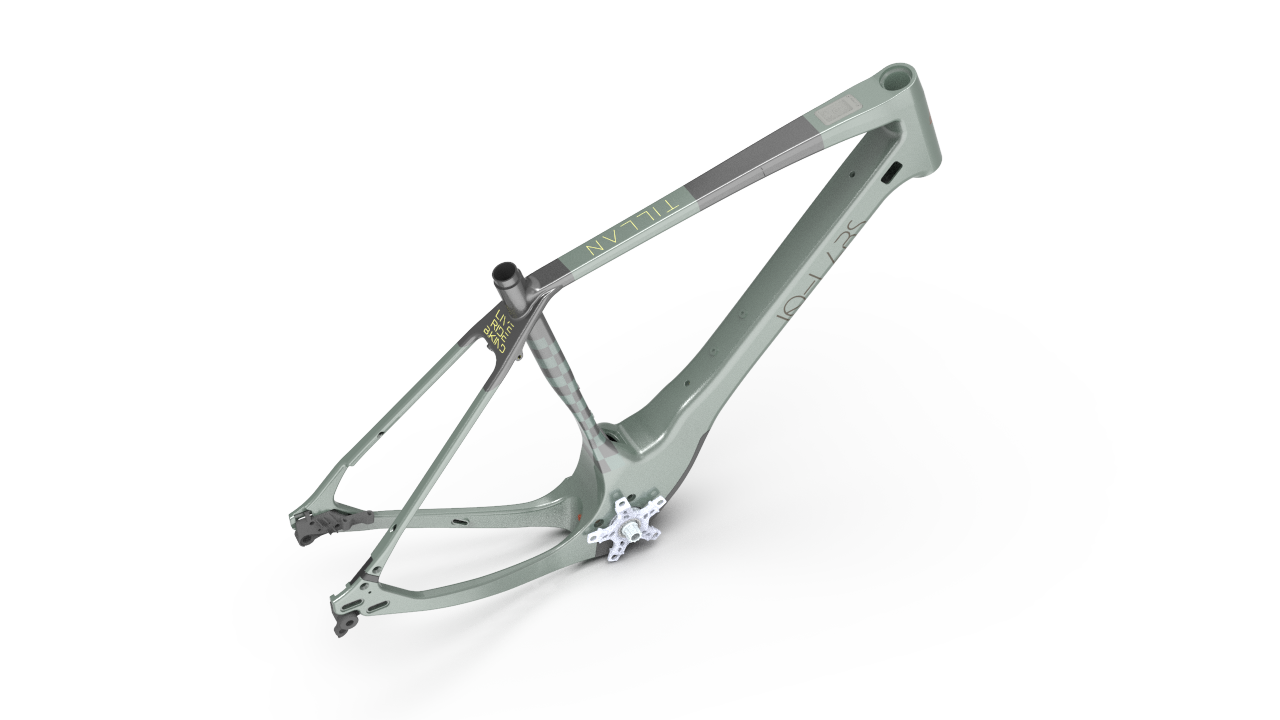

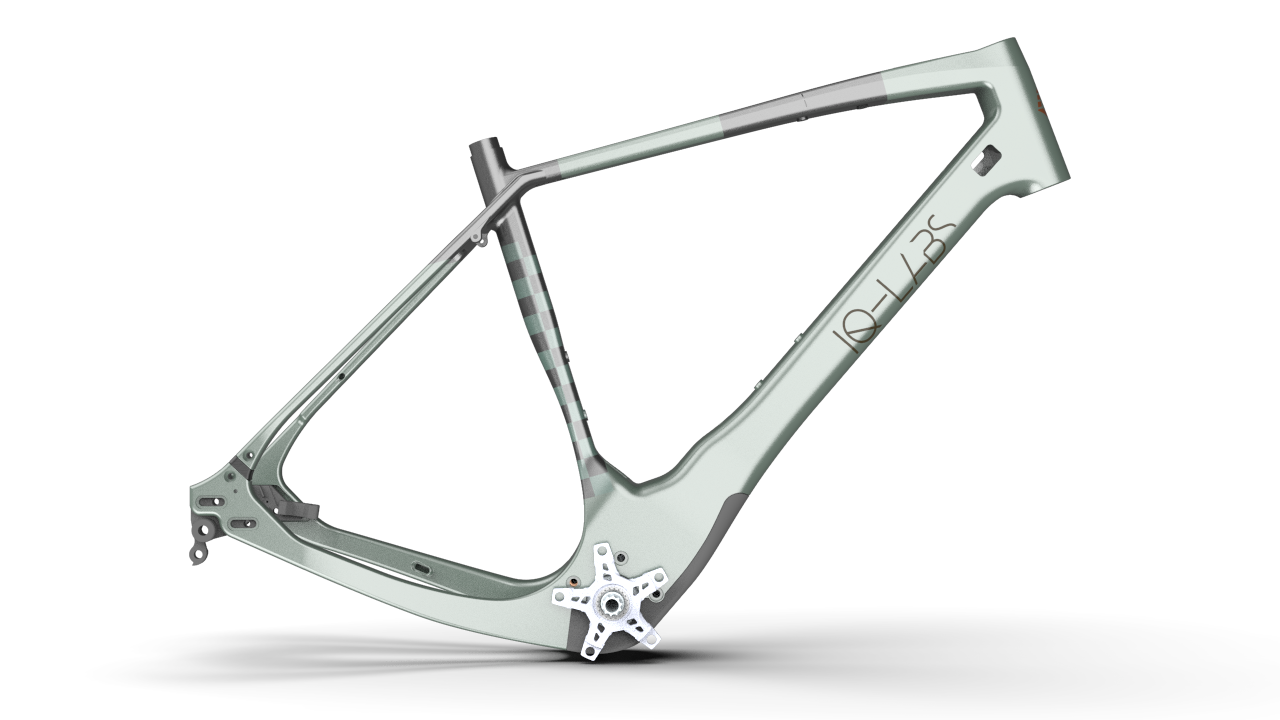

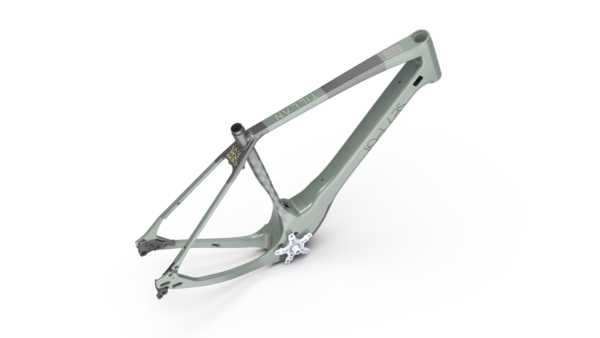

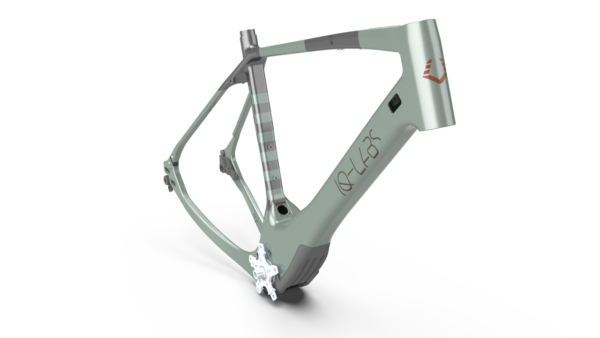

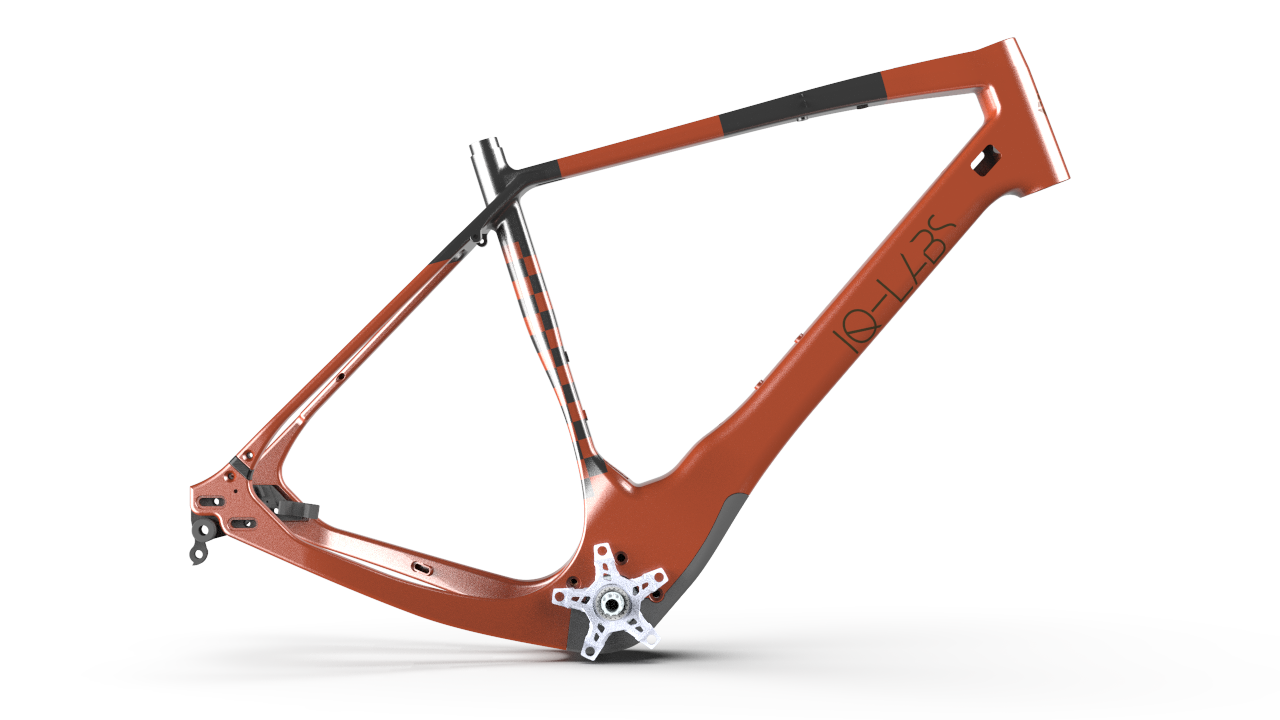

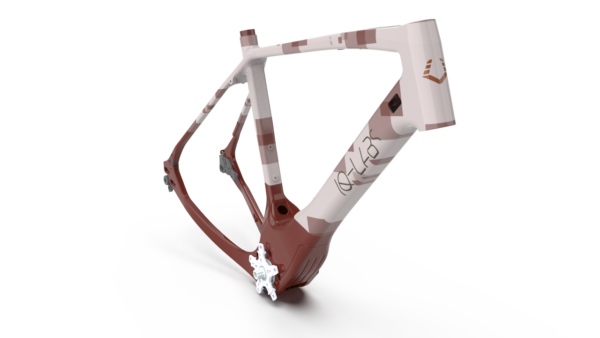

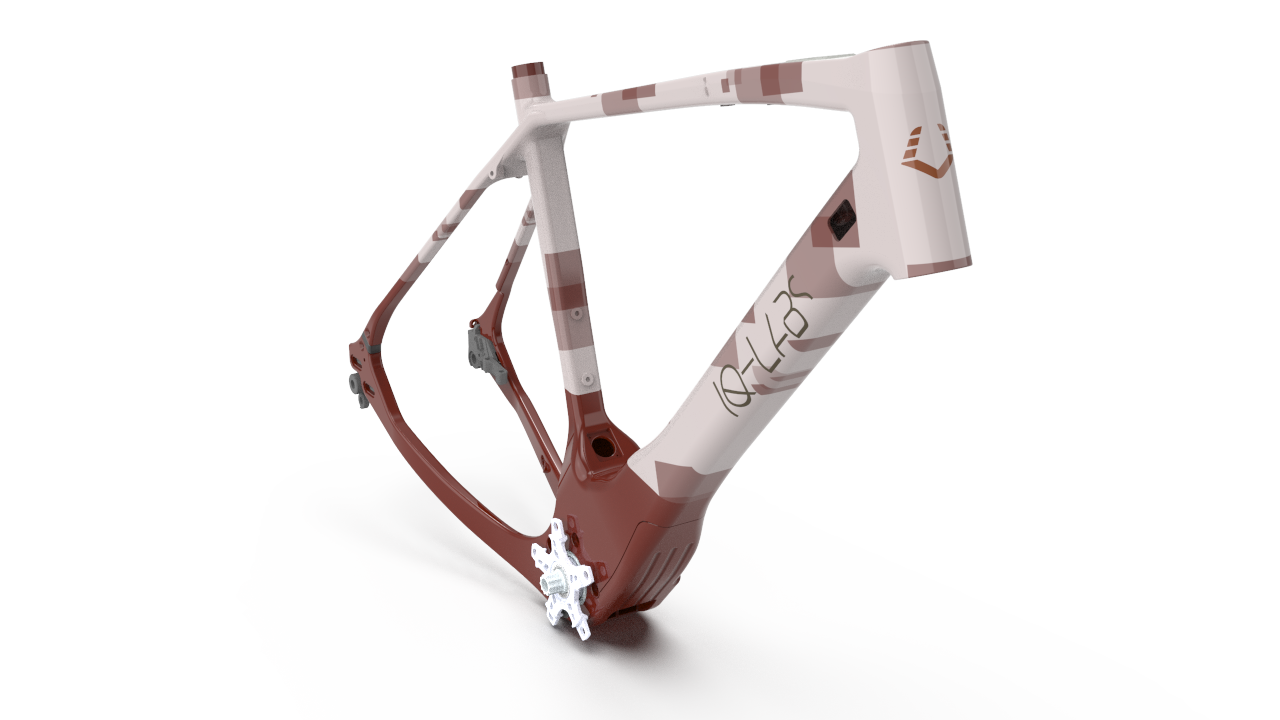

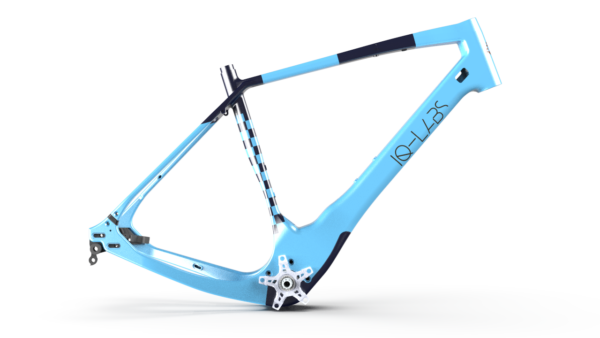

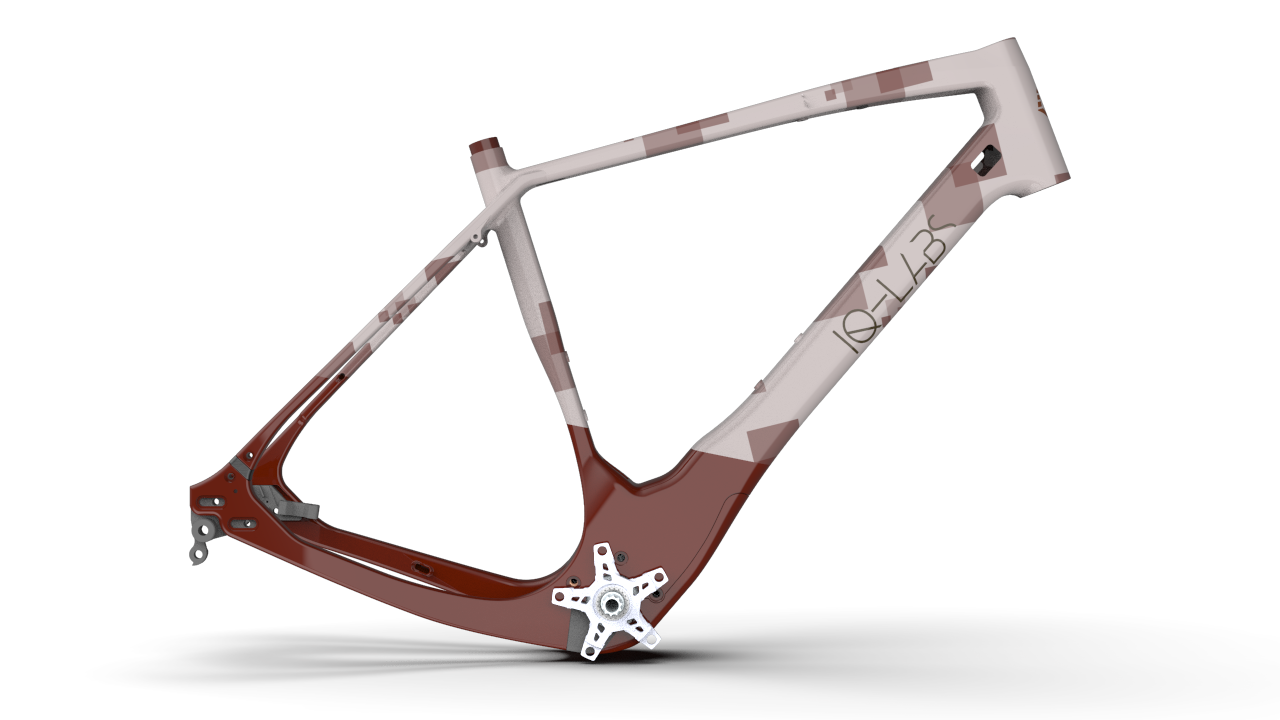

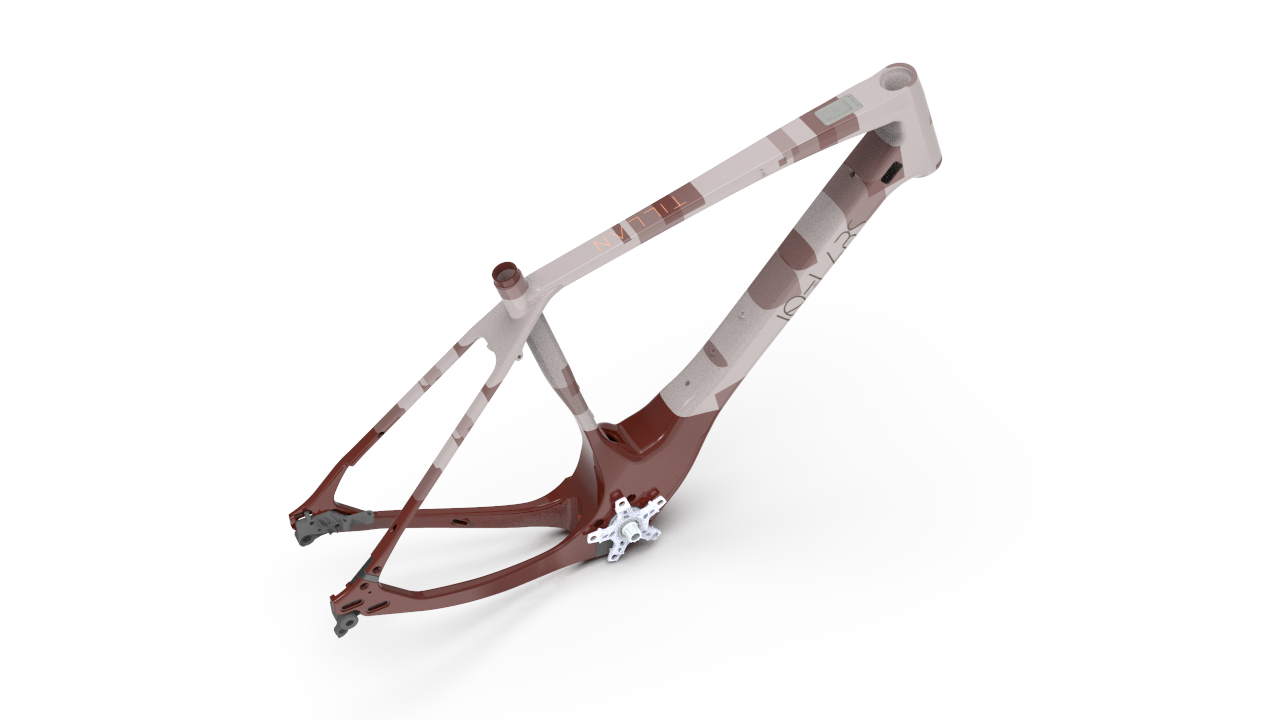

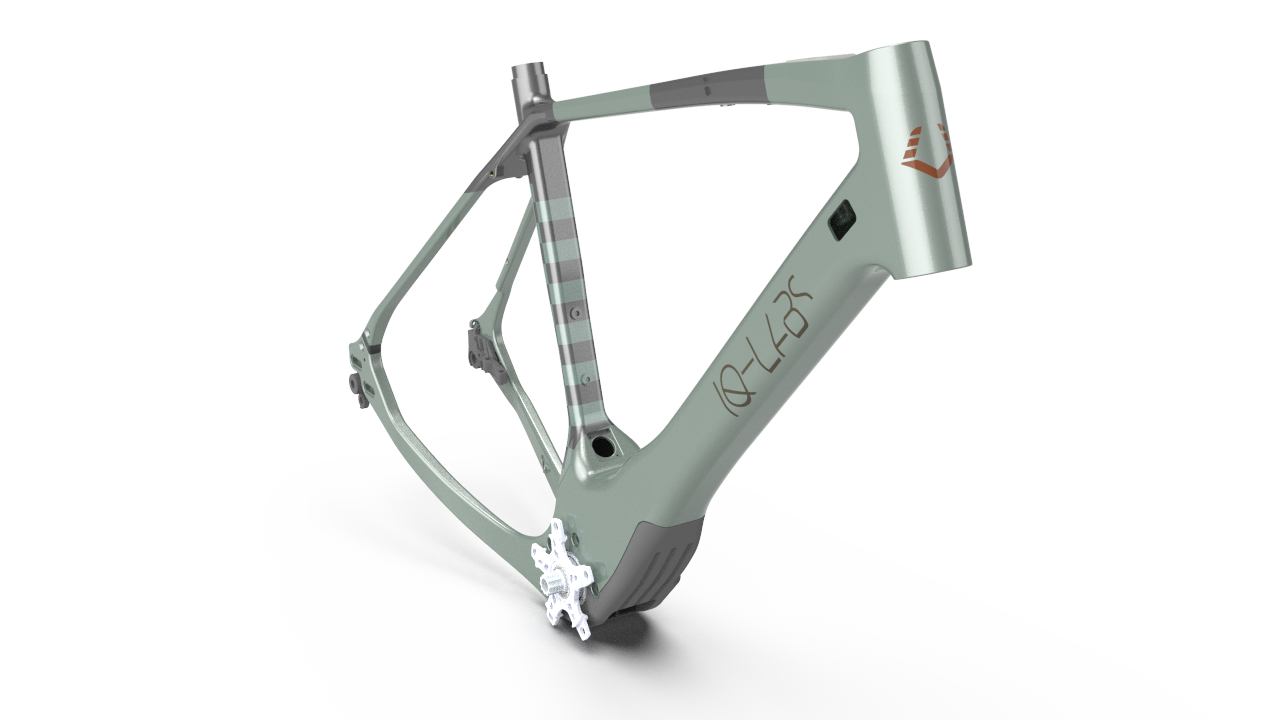

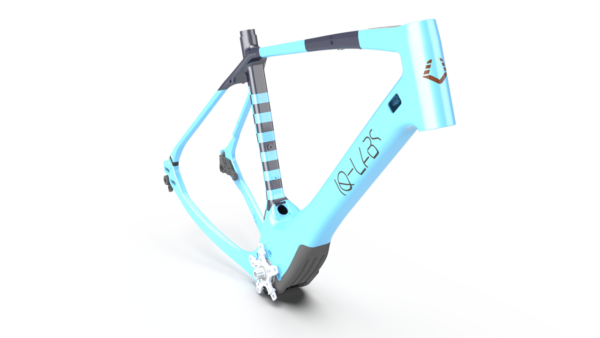

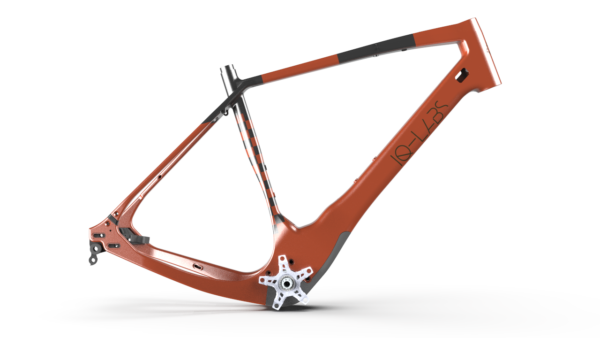

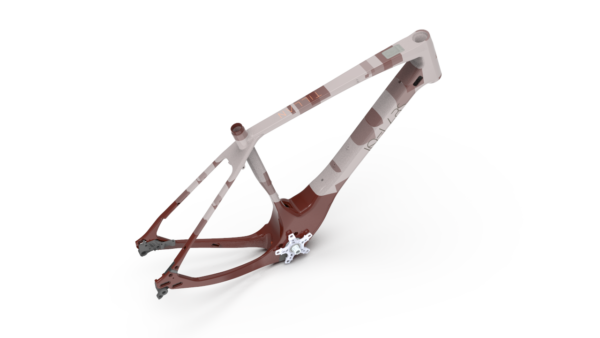

This is the frame that we use as the basis for the Tillan, which we use for our builds with chain and with Carbon gates and Rohloff.
The frameset will arrive with a 12×100 mm front axle (but you can also choose it from 15×100 mm without additional costs), rear 12×142 mm.
You will get the engine and battery assembled, the standard of the crank you need to use is ISIS (contact us for information).

The frame is only available with rear plate for chain configuration, if you want to make an e-gravel with the rohloff and carbon gates system we must necessarily supply you with all the bicycle assembled by us; write to us for information.

You can choose between 3 standard colors, which will be made after your order, or we can define together to create the coloring you have in mind.


Additional information

Weight 8 kg

54, 57, 60


Orango Gro, Vineguard Keyra, Scuba Sea, Project


Rodeo Labs Fork 3.0 Axle12, Only frame – no fork
